SE154 Elastic couplings

Référence : 632017

The design of the SE154 coupling provides the following features: radial removal without moving the coupled machines, and pre-compression of the resilient element during assembly, which limits tensile loading of the rubber.

Flexible Couplings

Paulstra Range

Made in France

Hutchinson

Référence

Out of stock

€349.56 tax excl. | €419.47 TTC

Unit price : €349.56 tax excl. | €419.47 tax incl.

Accouplement(s)

Description

What is the SE154 Juboflex® flexible coupling?

The Hutchinson Paulstra SE154 Juboflex® flexible coupling provides torque transmission while reducing cyclic irregularities and torque peaks.

Its resilient element combines pre-compressed natural rubber, bonded metal reinforcements and a pre-compression strap which must be removed after installation. The hubs are made from drop-forged steel, with some larger references manufactured from cast iron.

Its design allows radial removal without moving the coupled machines and limits tensile loading of the rubber through pre-compression.

What are the advantages of the SE154?

✅ Highly effective attenuation of cyclic irregularities and torque peaks.

✅ Excellent resistance to alternating deformation thanks to pre-compression.

✅ Radial removal without moving the coupled machines.

✅ High misalignment capability, reducing the need for highly precise machine alignment.

✅ Immediate installation without machining with removable bush versions.

What versions of the Juboflex® are available?

Standard SE154 with drop-forged steel hubs and larger references up to 1,200 N.m nominal torque
SE154 with removable bush for quick installation without machining the hub
SE154 “S” with a higher load capacity than the standard SE154

Note: the resilient elements are supplied pre-compressed with a strap. This strap must be removed after installation. During operation, pre-compression is maintained by the fixing bolts.

What applications is the SE154 suitable for?

Air Conditioning / AHUs

Screens and Hoppers

Standard SE154 dimensions

The diagram below identifies the dimensions of the standard versions. The hubs are supplied unbored.

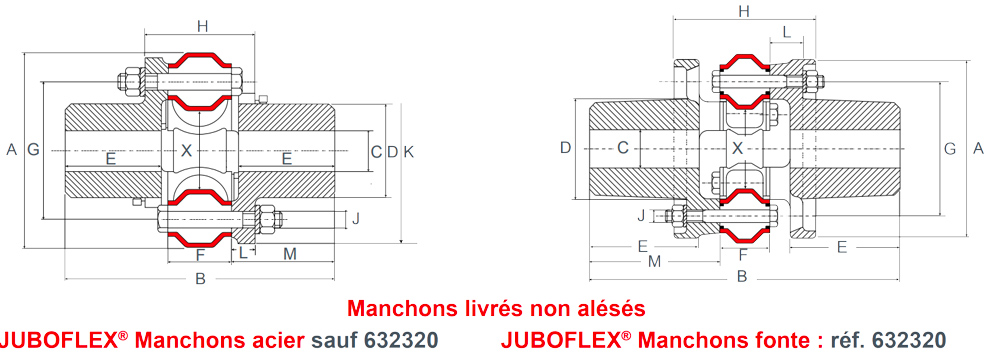

Standard SE154 Juboflex coupling dimensional drawing

Ref.	Max. C (mm)	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	M (mm)	X (mm)
632027	30	91	128	42	47	28	65	50	8	87	11	50	23
632023	40	117	172	56	66	32	85	60	10	113	14	70	35
632017	48	142	196	68	70	46	100	80	12	135	17	75	40
632029	60	181	247	90	93	51	132	93	14	172	21	98	63
632031	70	202	284	105	109	54	150	96	18	196	21	115	68
632043	75	232	322	115	124	62	170	108	20	225	23	130	75
632025	80	263	346	122	133	68	190	116	20	246	24	139	82
632320	60 to 100	280	486	156	172	78	210	222	20	—	52	204	110

SE154 dimensions with removable bush

This version allows immediate installation without machining. The shaft diameter depends on the removable bush used.

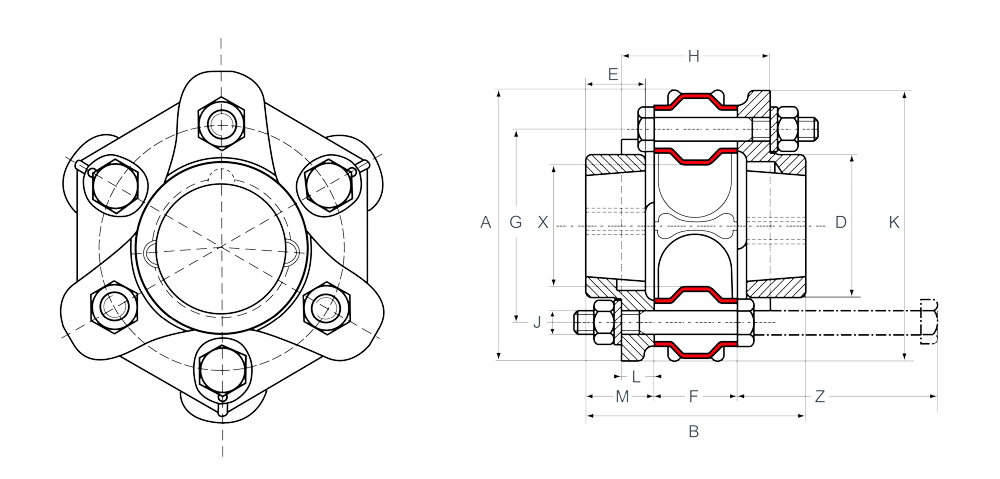

SE154 coupling with removable bush dimensional drawing

Ref.	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	M (mm)	X (mm)	Z (mm)
632205	91	74	48	20	28	65	54	8	91	11	23	23	65
632210	117	90	60	25	32	85	65	10	121	14	29	35	75
632217	142	106	70	25	46	100	81	12	140	17	30	40	90
632226	181	121	95	30	51	132	91	14	177	21	35	63	100

SE154 “S” dimensions

The “S” version uses the same Juboflex® principle with a higher load capacity.

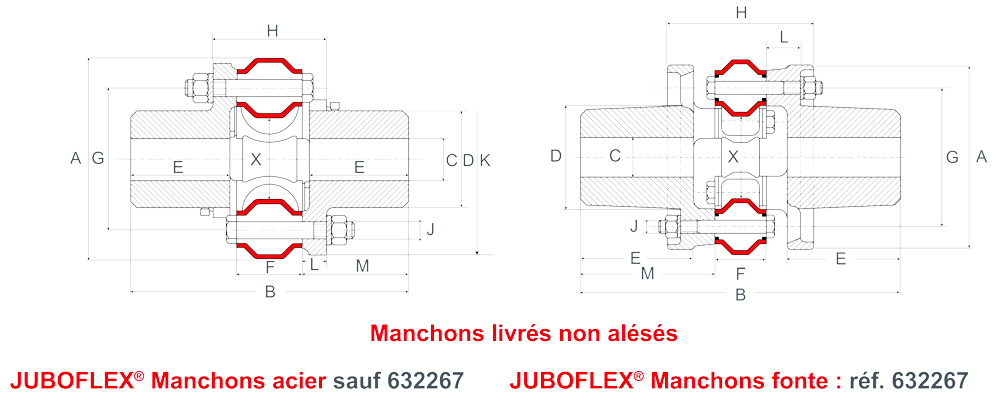

SE154 S high-capacity Juboflex coupling dimensional drawing

Ref.	Max. C (mm)	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	M (mm)	X (mm)
632260	30	91	128	42	47	28	65	50	8	87	11	50	23
632261	40	117	172	56	66	32	85	60	10	113	14	70	35
632262	48	142	196	68	70	46	100	80	12	135	17	75	40
632263	60	181	247	90	93	51	132	93	14	172	21	98	63
632264	70	202	284	105	109	54	150	96	18	196	21	115	68
632265	75	232	322	115	124	62	170	108	20	225	23	130	75
632266	80	263	346	122	133	68	190	116	20	246	24	139	82
632267	60 to 100	280	486	156	172	78	210	222	20	—	52	204	110

How to install the SE154 coupling?

The resilient element is supplied pre-compressed with a strap. During installation, successively secure the mounting points of the resilient element to the two hubs, tighten the bolts to the recommended torque and then remove the strap.

During operation, the coupling must operate without the strap around the resilient element. Pre-compression is maintained by the fixing bolts.

View the SE154 technical data sheet
