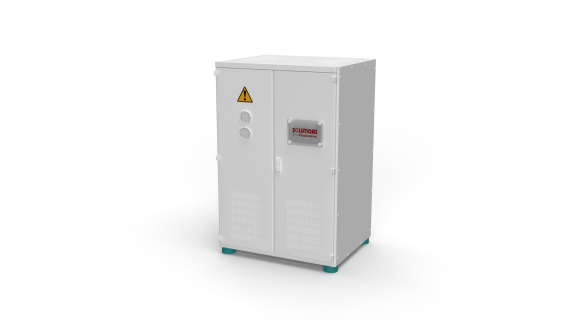

Electrical cabinets

In commercial and industrial sectors, the installation of electrical cabinets and electrical enclosures is common, as they protect sensitive networks. These units, whether installed indoors or outdoors, must be isolated from vibrations and impacts in order to preserve their internal components. Solutions Elastomères offers a selection of suitable anti-vibration solutions. Our technicians are available to answer your questions.

Filters

There are 10 products.

Trier par :

SE110 MOUNTINGS

The SE110 is a remarkable antivibratory product : Better than 90% insulation at 1.500 rpm (25 Hz). Constant height over wide load range. Stabilised characteristics during Service Life.

€12.20 HT

€14.64TTC

SE111 MOUNTINGS

The design of the SE111 mounting gives the following basic characteristics : Radial elasticity greater than axial elasticity The rubber works in compression (axial), shear (radial), compression/shear according to the fixing method

€4.78 HT

€5.74TTC

SE113 MOUNTINGS

The SE113 mounting comprises an elastomer pad with an anti-slip ridged surface and a threaded stud allowing accurate height adjustment of equipment.

€14.81 HT

€17.77TTC

SE117 MOUNTINGS

The SE117 mounting comprises one piece elastomer bonded to a top and bottom plate.

€38.72 HT

€46.46TTC

SE137 MOUNTINGS

The SE137 mount comprises two concentric metallic parts joined by a bonded, perforated rubber ring

€15.59 HT

€18.71TTC

SE131 MOUNTINGS

The SE131 mountings steel have a mounting plate, cover and swaged teel shaft. This mouting is available with stainless steel or mild steel zinc plated metalwork. The resilient parts are stainless steel wire cushions. The steel parts are zinc plated.

€171.69 HT

€206.03TTC

SE128 MOUNTINGS

This range of mountings has one or two steel mounting plates depending on the model, one or several high strength steel springs, 2 light alloy rings and a stainless steel wire cushion in each spring.

SE126 MOUNTINGS

The SE126 range has a pressed steel casing and mounting plate and light alloy shaft. The resilient element is a stainless steel wire pad.

SUPPORTS SEV1786

This suspension system is particularly suitable for mounting exhaust pipes from generator sets on board ship or permanently mounted in buildings.

€63.54 HT

€76.25TTC

SE111B MOUNTINGS

The design of the SE111B elastic stops gives the following basic characteristics : Highly deformable, allowing high energies to be absorbed. Progressive absorption of energy due to the carefully designed shape.

€14.81 HT

€17.77TTC

Electrical cabinets and electrical enclosures are widely used in both commercial and industrial environments. They are essential for protecting the sensitive electrical or IT networks they contain. These electrical units can be installed indoors or outdoors, but they must be isolated from vibrations and impacts to prevent these stresses from being transmitted to the components.

Finding the right isolation solution for your electrical cabinets and enclosures helps ensure optimum performance and extend the service life of your equipment.

In this category, Solutions Elastomères offers a selection of anti-vibration solutions for electrical cabinets and similar equipment. Do you need further advice? Our technicians will be happy to answer your questions.

Contact us View all applications

What is an electrical cabinet or electrical enclosure?

An electrical cabinet is a large metal or plastic enclosure designed to bring together the electrical network of an installation in one central point. Its role is to collect electrical power and redistribute it safely, while protecting the electrical installation. An electrical panel has the same function as an electrical cabinet, but it is not designed to manage very large installations without putting them at risk. Electrical enclosures are used in commercial and industrial sectors, directly on construction sites or in technical rooms such as boiler rooms or lift machinery rooms.

What are the main components of an electrical cabinet?

The main components of an electrical cabinet are:

The enclosure, which protects the various IT and electrical components, usually made of metal or plastic
The fixing systems, used to easily install the modules required for the correct operation of the installation
Protection systems, such as lightning protection devices
Safety systems, such as an emergency stop
A remote control system for the equipment

Anti-vibration solutions for electrical cabinets and enclosures

The main role of an electrical cabinet is to protect its components. It must therefore not be exposed to high or long-term vibrations. Vibrations can damage or break the modules inside the enclosure. To avoid these risks, it is recommended to raise the installation using suitable anti-vibration mounts.

We offer several product families designed to isolate vibrations and reduce the noise nuisance they can generate:

Solutions Elastomères offers a selection of anti-vibration and acoustic solutions for electrical cabinets and similar equipment.

Do you need further advice? Our technicians will be happy to answer your questions.
