SE101 MOUNTINGS

Référence : VE 101-01

The SE101 metal anti-vibration mounting is a spring hanger designed for ceilings and other applications requiring operation in tension.

Metal Suspensions

Paulstra Range

Made in France

Hutchinson

Référence

Out of stock

€162.00 tax excl. | €194.40 TTC

Unit price : €162.00 tax excl. | €194.40 tax incl.

Support(s)

Prix dégressifs

Unité	Unit price €HT \| €TTC
11 unités	147,08 € HT \| 176,50 € TTC
26 unités	139,74 € HT \| 167,69 € TTC

Description

What is the SE101 anti-vibration hanger?

The Hutchinson Paulstra SE101 range includes the VE101, VE111, VE112 and VE113 metal spring hangers, designed primarily for applications operating in tension.

These shock absorbers consist of a cylindrical stainless steel spring, a zinc-plated sheet steel support, an elastomer acoustic isolation guide and, depending on the model, a shaft or two threaded rods.

The VE112 series also incorporates a metal cushion inside the spring.

Axial natural frequency: from 3.5 to 6 Hz.
Static load: from 1 to 420 daN depending on the reference.
Resilient element: cylindrical stainless steel spring.
Function: anti-vibration suspension operating in tension.
Applications: buildings and suspended equipment.
Manufactured in: France.

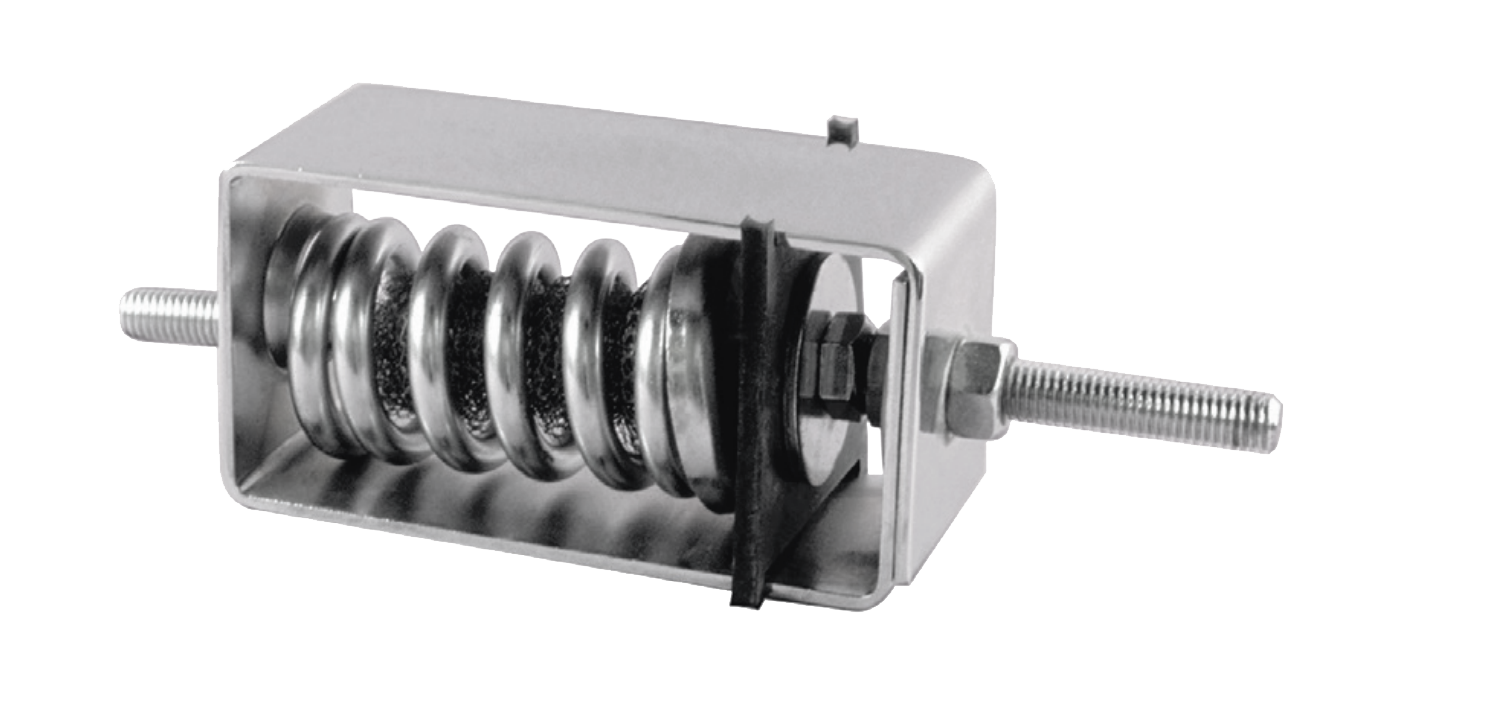

Hutchinson Paulstra SE101 metal anti-vibration spring hanger

What are the advantages of the SE101?

✅ Very low natural frequency: natural frequency between 3.5 and 6 Hz for effective vibration isolation.

✅ Tension applications: design particularly suited to suspended equipment and structural elements.

✅ Reduced vibration transmission: helps improve acoustic performance within buildings.

✅ Wide load range: from 1 to 420 daN depending on the series and reference.

✅ Stainless steel spring: resilient element combined with an elastomer acoustic isolation guide.

✅ Several configurations: VE101, VE111, VE112 and VE113 to suit different load levels and installation configurations.

What applications is the SE101 suitable for?

Paulstra recommends VE spring hangers for suspending suspended ceilings, air-conditioning equipment and piping. Their low natural frequency helps reduce the transmission of vibration and noise to the building structure.

Air Conditioning / AHUs

Ceilings

Piping

What is the difference between the VE101, VE111, VE112 and VE113?

The four series are based on the same metal spring suspension principle, but cover different load ranges.

Series	Load Range	Special Feature
VE101	1 to 43 daN	5 load levels
VE111	1 to 43 daN	5 load levels
VE112	25 to 230 daN	Metal cushion inserted inside the spring
VE113	150 to 420 daN	Version for the highest loads

SE101 hanger dimensions and installation

Dimensions and fixing systems vary depending on the series. The diagrams below identify the overall dimensions and installation configuration of each model.

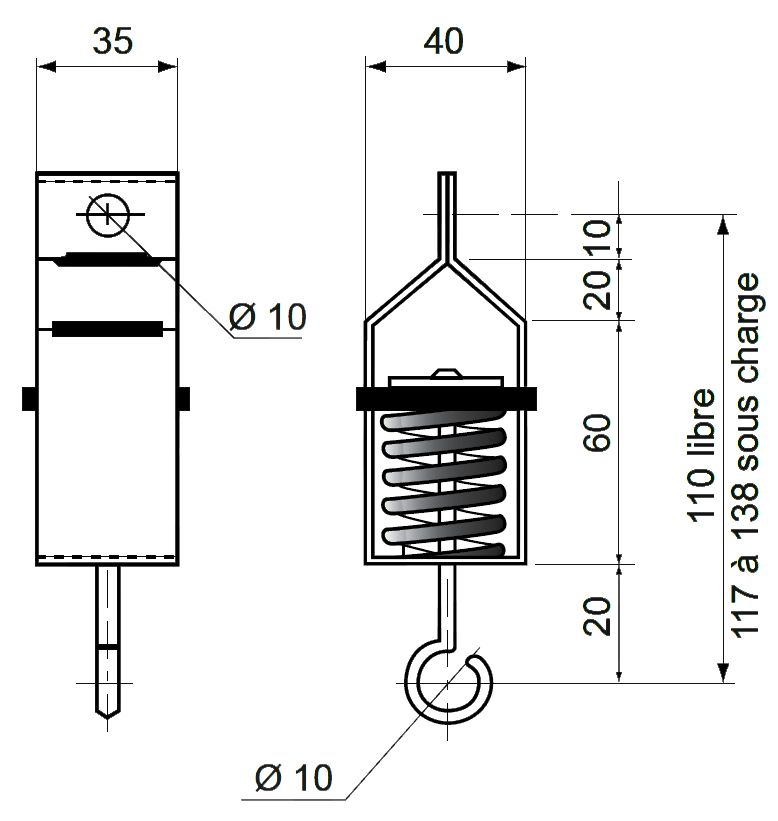

VE101

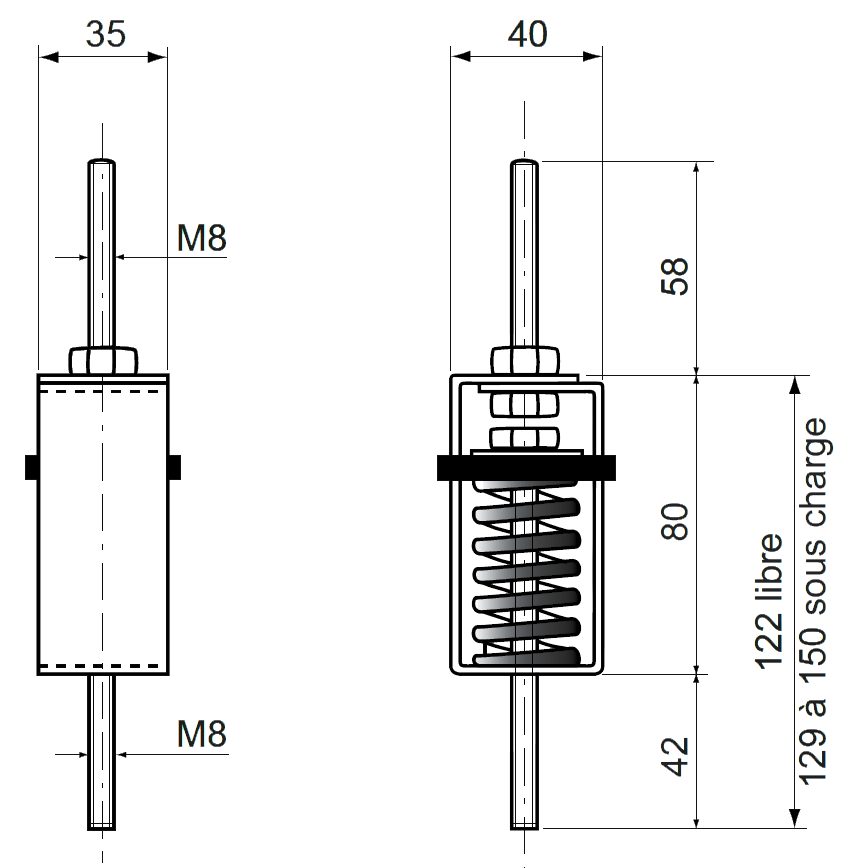

VE111

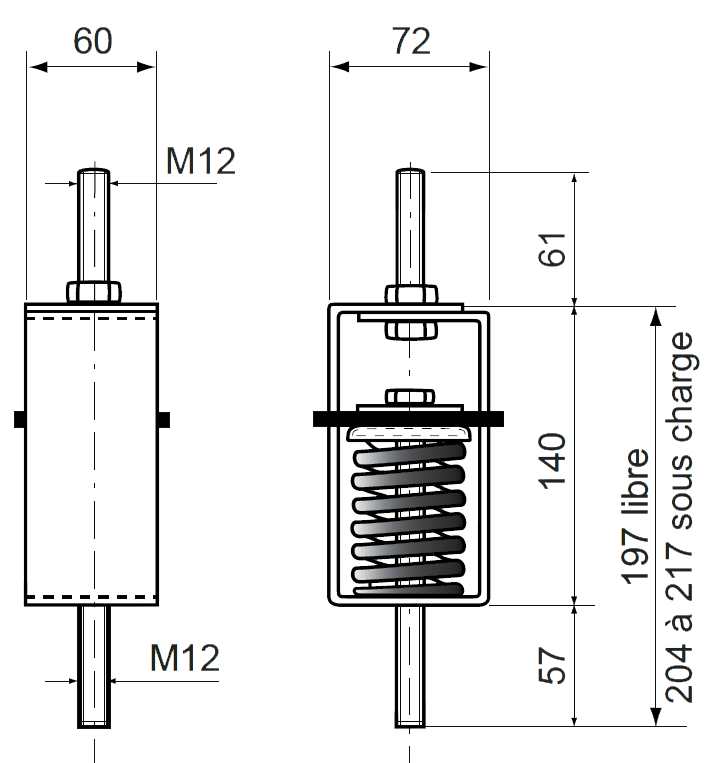

VE112

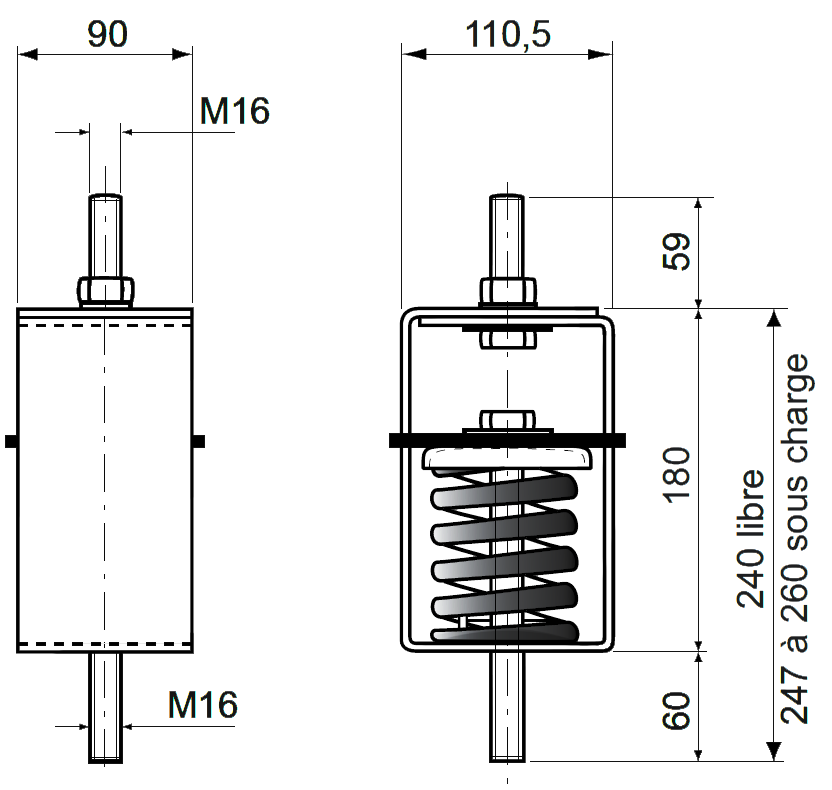

VE113

SE101 references and load ranges

The current range includes 14 references across the four series.

Reference	Static Load
VE101-01	1 to 5 daN
VE101-02	4 to 13 daN
VE101-03	7 to 20 daN
VE101-04	12 to 33 daN
VE101-05	19 to 43 daN
VE111-01	1 to 5 daN
VE111-02	4 to 13 daN
VE111-03	7 to 20 daN
VE111-04	12 to 33 daN
VE111-05	19 to 43 daN
VE112-01	25 to 70 daN
VE112-02	45 to 130 daN
VE112-03	85 to 230 daN
VE113	150 to 420 daN

Note: the natural frequencies of 3.5 to 6 Hz are specified at the maximum loads within the operating ranges.

How to choose your SE101 hanger?

Selection mainly depends on the actual load supported by each hanger and the type of installation required.

VE101 / VE111: for low loads from 1 to 43 daN.
VE112: for loads from 25 to 230 daN.
VE113: for the highest loads, from 150 to 420 daN.
Then select the reference whose load range includes the actual load applied to each hanger.

Important: for a suspended installation, divide the weight of the equipment or structure between the different suspension points to determine the load applied to each hanger.

View the SE101 technical data sheet

Complete your anti-vibration isolation

To complete the vibration isolation of your installation, discover also our Super Resilient and Regufoam solutions, as well as the complete Hutchinson Paulstra range.
