SE152 Elastic couplings

What is the SE152 flexible coupling?

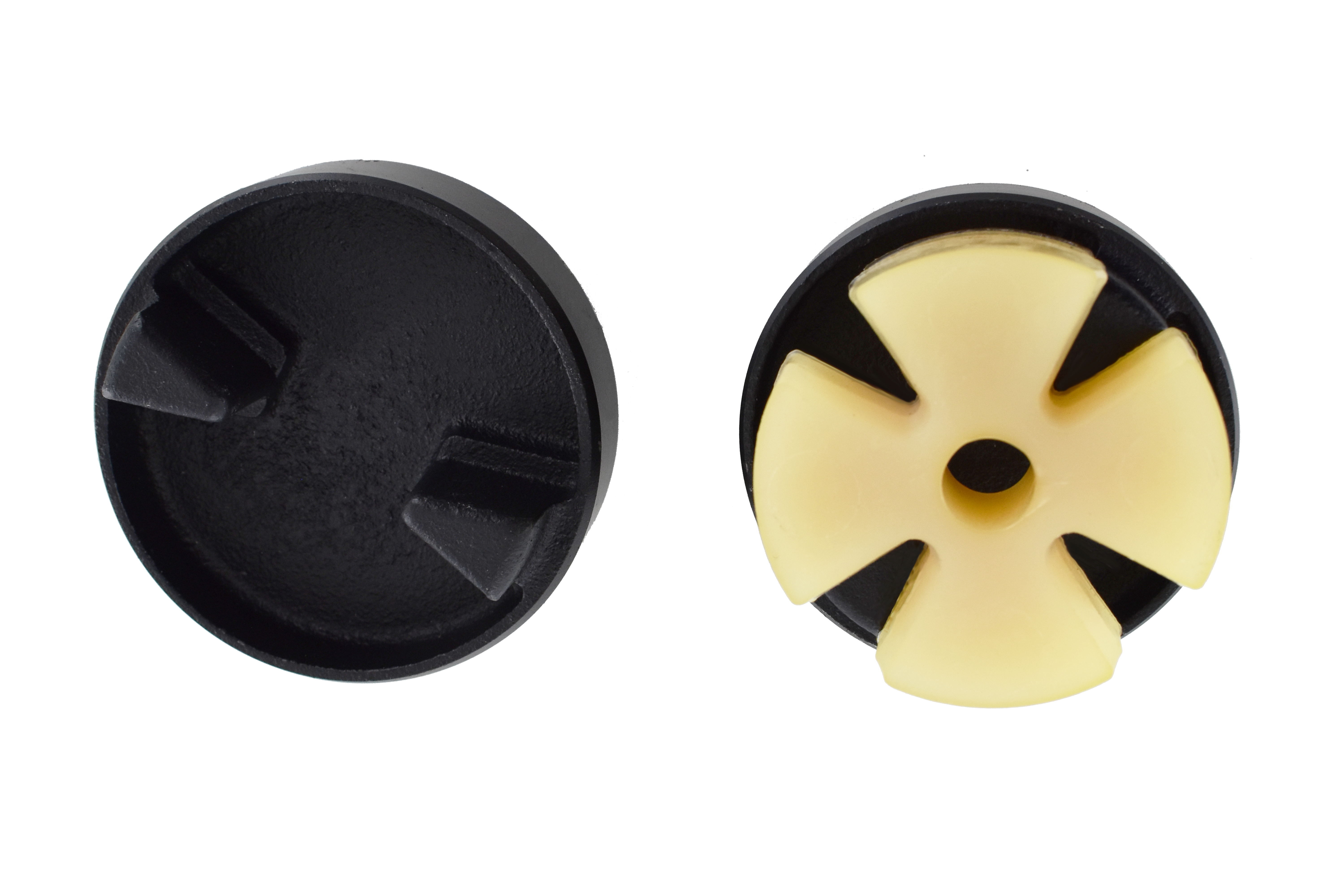

The Hutchinson Paulstra SE152, also known as MPP®, is a compact flexible coupling designed to transmit torque between two shafts while providing flexibility within the transmission.

It consists of a cross-shaped polyurethane resilient element positioned between two cast iron hubs fitted with drive fingers.

• Nominal torque: from 30 to 650 N.m depending on the reference.
• Maximum torque: up to 2,000 N.m.
• Maximum speed: up to 9,000 rpm.
• Operating temperature: from -30 °C to +70 °C continuously.
• Assembly: push-fit assembly.
• Manufactured in: France.

What are the advantages of the SE152 MPP®?

✅ Compact design: its compact cylindrical shape makes it easy to integrate into a transmission system.

✅ Simple assembly: the components are assembled by push-fitting.

✅ Compression operation: the polyurethane spider operates in compression between the drive fingers of the hubs.

✅ Positive safety: the design maintains a mechanical connection between the two parts of the coupling.

✅ Flexible transmission: the MPP® provides torsional, radial, axial and angular flexibility.

What applications is the SE152 suitable for?

The SE152 is particularly suitable for connecting a motor to a driven machine. The technical data sheet notably shows the example of an electric motor coupled to a centrifugal pump.

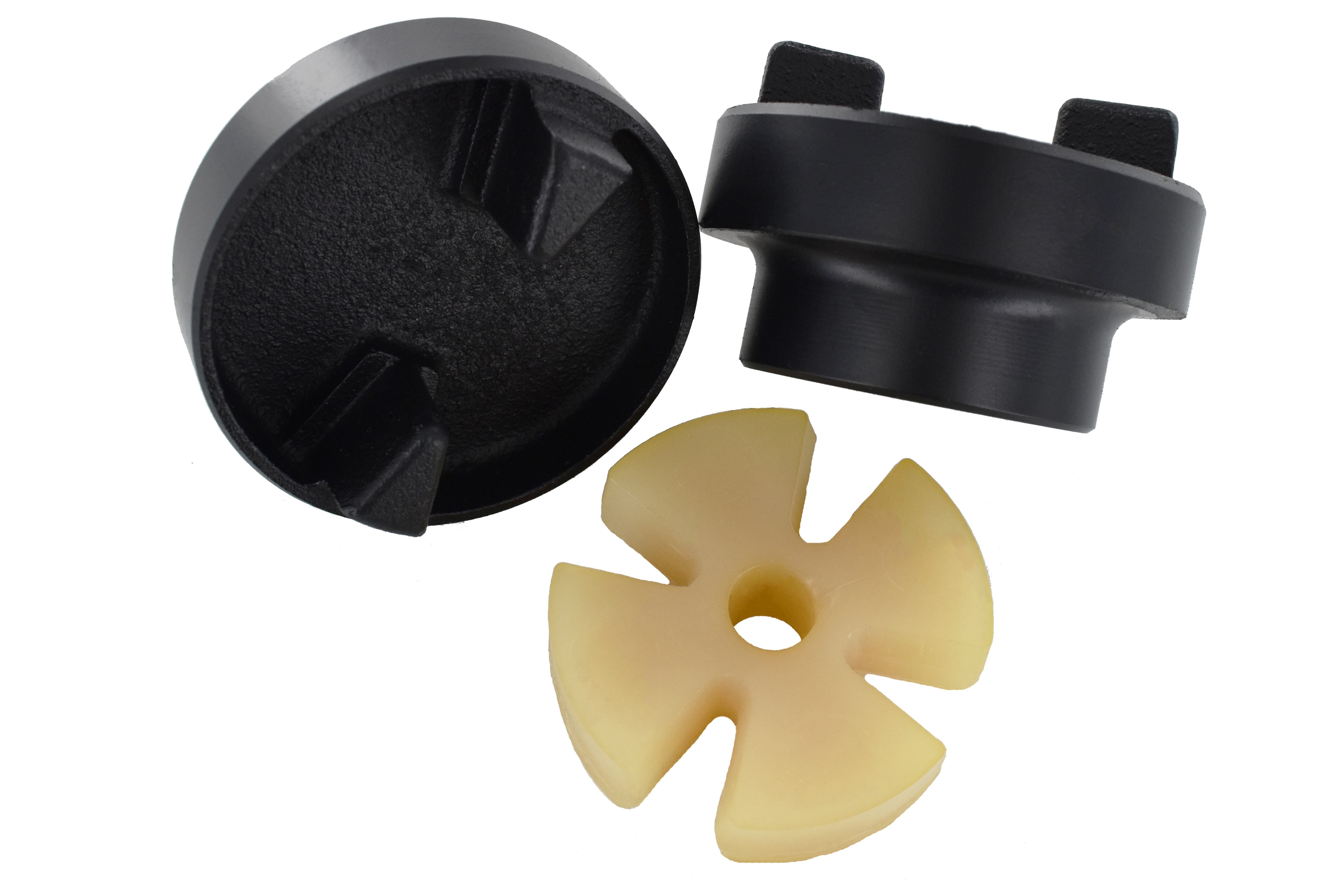

How does the SE152 coupling work?

The polyurethane spider is positioned between the drive fingers of the two hubs. During torque transmission, the resilient element operates in compression.

The MPP® design provides several types of flexibility:

• torsional flexibility;
• radial flexibility;
• axial flexibility through the push-fit assembly;
• angular flexibility.

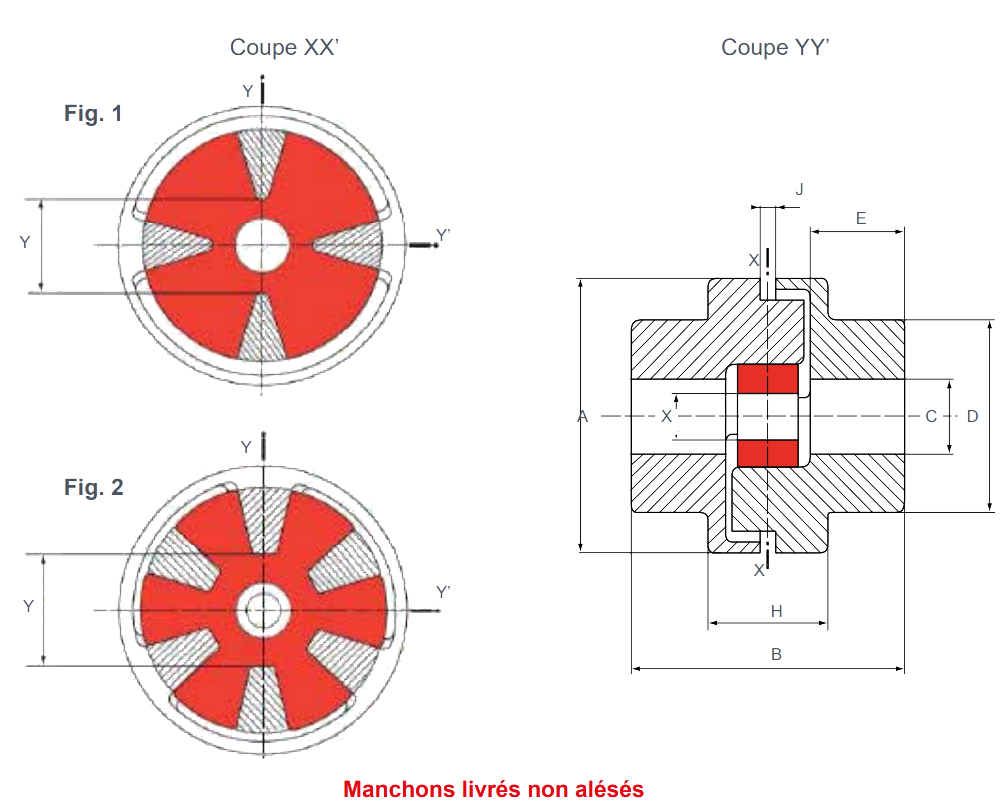

SE152 dimensional characteristics

The MPP® 3, 8 and 20 correspond to figure 1. The MPP® 38 and 65 correspond to figure 2.

SE152 coupling parts list

Each coupling consists of one resilient element and two hubs.

SE152 functional characteristics

The operating range depends on the transmitted torque and rotational speed. The technical data sheet provides a power range chart for selecting the different MPP® models.

* Radial and angular misalignment values are specified for a rotational speed of 3,000 rpm.

How to choose and install your SE152 coupling?

Selection mainly depends on the motor power, rotational speed, torque to be transmitted and shaft dimensions.

The technical data sheet provides a selection guide for standard three-phase 50 Hz asynchronous motors operating at approximately 3,000, 1,500, 1,000 or 750 rpm.

• MPP® 3: nominal torque 30 N.m.
• MPP® 8: nominal torque 80 N.m.
• MPP® 20: nominal torque 200 N.m.
• MPP® 38: nominal torque 380 N.m.
• MPP® 65: nominal torque 650 N.m.

View the SE152 technical data sheet and selection guide

Discover Hutchinson Paulstra flexible couplings

Discover the MPP® SE152 as well as our complete range of flexible couplings and Hutchinson Paulstra solutions for torque transmission and vibration isolation.

Need advice?

Our technical team can help you determine the MPP® best suited to your motor, torque, rotational speed and transmission dimensions.
