SE116 MOUNTINGS

Référence : 810002

The EVIDGOM SE116 mounting is an axisymmetric rubber mounting. In simplified terms, it can be considered as two thick conical membranes sharing the same axis and joined at their larger bases to form a type of elastic ring.

Rubber Suspensions

Paulstra Range

Made in France

Hutchinson

Référence

6 item in stock

€7.86 tax excl. | €9.43 TTC

Unit price : €7.86 tax excl. | €9.43 tax incl.

Support(s)

Description

What is the Evidgom SE116 mounting?

The Paulstra Evidgom SE116 anti-vibration mounting is an axisymmetric rubber mounting designed to provide very high axial flexibility.

Its design can be compared to two thick conical diaphragms sharing the same axis and joined at their larger bases. With a natural frequency ranging from 2.5 to 7 Hz, it is particularly suitable for equipment requiring low-frequency vibration isolation.

How does the Evidgom mounting work?

Very high axial flexibility allowing significant deflection.
Very low natural frequency of just a few Hertz.
Progressive bump-stop effect in the event of impact or accidental overload.
Inherent elastomer damping helps absorb part of the vibratory energy.

What are the advantages of the Evidgom mounting?

✅ Very low-frequency isolation: natural frequency from 2.5 to 7 Hz.

✅ Energy absorption: the elastomer provides inherent damping.

✅ Overload protection: its geometry creates a progressive bump-stop effect.

What applications is the Evidgom mounting suitable for?

The Evidgom SE116 is suitable for lifts, grinders, air-conditioning systems, compressors, screens, generator sets, hoppers, fans, mechanical ventilation systems and other equipment requiring high vertical flexibility.

Grinders

Air Conditioning / Heat Pumps

Compressors

Generator Sets

Screens and Hoppers

How to choose your Evidgom SE116 mounting?

All-rubber version: without bonded fixing plates.
Version with fixings: for installations requiring mechanical fastening.
Load: each reference must operate within its specified load range.
Deflection: the choice depends on the required deformation and the stability of the installation.

What precautions should be taken with an Evidgom mounting?

Achieving a very low natural frequency requires significant deflection. This must not be achieved at the expense of suspension stability. At full load, lateral stops may be required.

When the load/deflection curve has an inflection point, a suspension should be selected with a subtangent greater than the static deflection.

What are the dimensions of the Evidgom SE116 mounting?

The three diagrams below correspond to the configurations shown in the dimensional table.

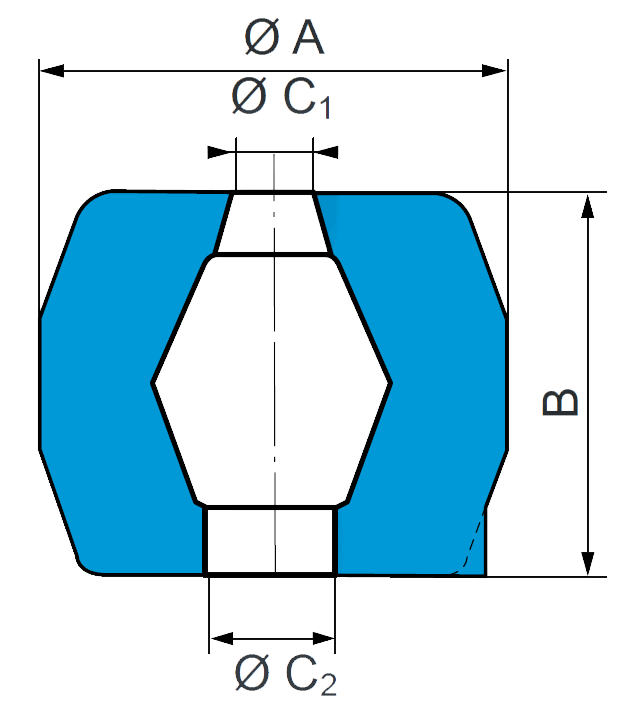

Figure 1

Evidgom SE116 figure 1

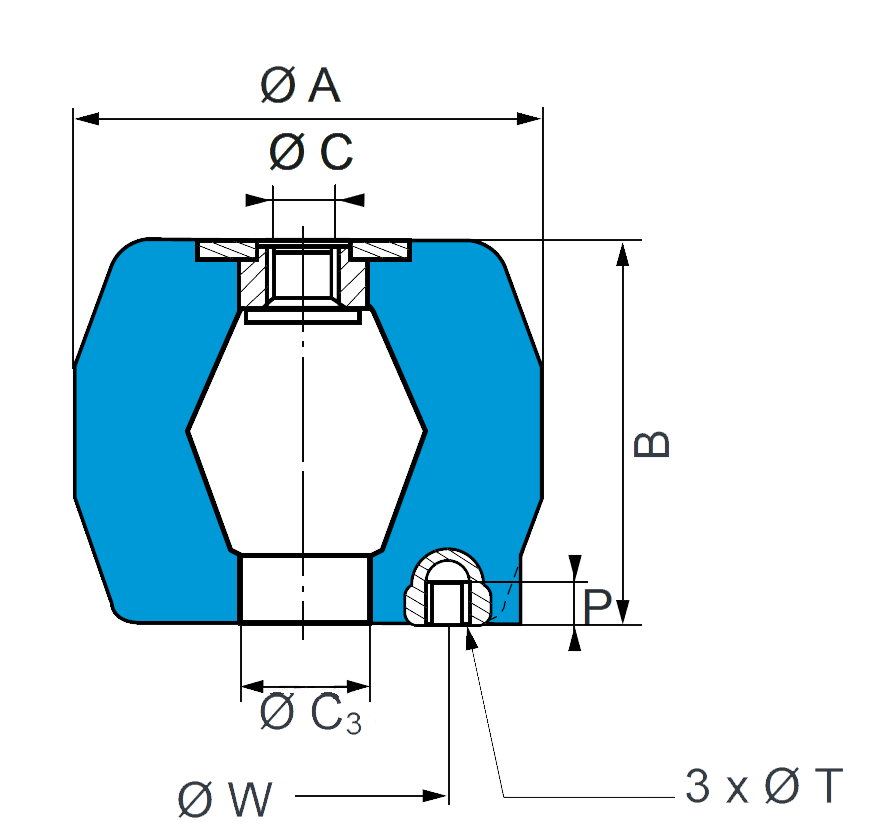

Figure 2

Evidgom SE116 figure 2

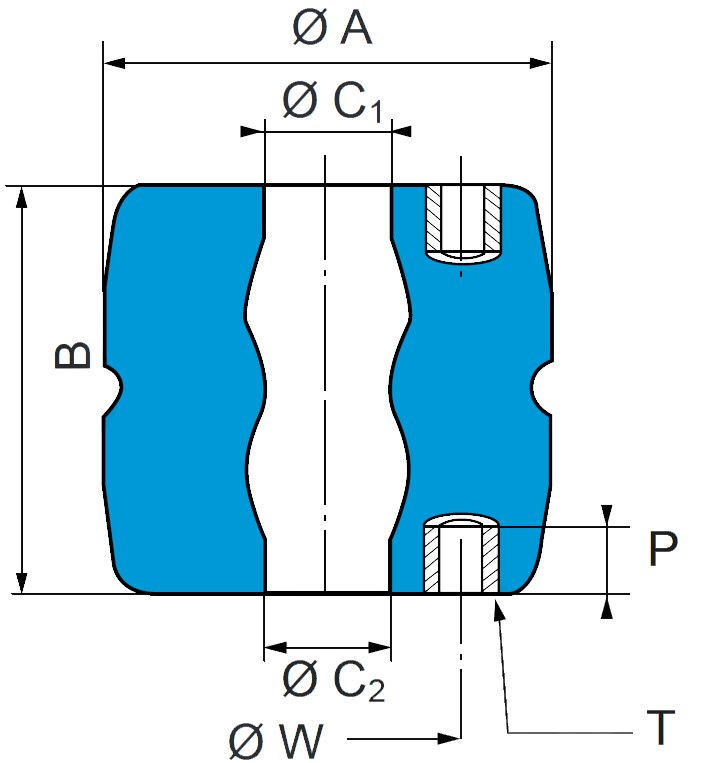

Figure 3

Evidgom SE116 figure 3

Rubber Ref.	Fig.	Fixing Ref.	Fig.	Ø A (mm)	B (mm)	C	Ø C1 (mm)	Ø C2 (mm)	Ø C3 (mm)	Ø W (mm)	T	P (mm)
810002	1	—	—	34	25	—	8	8	—	—	—	—
810003	1	—	—	40	55	—	14	14	—	—	—	—
810005	1	—	—	50	70	—	14	14	—	—	—	—
—	—	810780	2	60	40	M10	—	25	25	40	M6	6
810006	1	810766	2	85	70	M16	20	30	30	60	M8	8
810008	1	810768	2	95	90	M16	20	30	30	60	M8	8
810009	1	810769	2	108	90	M16	20	30	34	70	M10	10
810012	1	—	—	120	110	—	20	30	—	—	—	—
810013	1	810773	2	140	120	M16	25	40	35	70	M10	10
810014	1	810784	2	125	140	M16	25	30	25	70	M10	10
—	—	810774	2	125	140	M16	25	30	25	70	4 × M12	12
810019	1	810779	2	140	90	M16	28	12	28	70	M10	10
810020	1	810770	2	140	56	M16	30	30	30	70	M10	10
810015	1	810775	2	155	150	M16	25	30	30	90	M14	14
810016	1	810776	2	188	180	M24	40	40	40	90	M14	14
—	—	810733	3	250	230	—	70	70	—	150	6 × M24	40
—	—	810736	3	350	290	—	85	85	—	196	8 × M24	40
—	—	810735	3	350	395	—	85	85	—	196	8 × M24	40

What load can an Evidgom SE116 mounting support?

The loads shown correspond to the operating range of each reference.

Reference	Operating Range (daN)	Max. Deflection (mm)	Ø A Under Load (mm)	B (mm)
810002	5 to 15	5	40	25
810003	10 to 40	11	50	55
810005	20 to 80	14	63	70
810780	15 to 60	10	80	40
810766	25 to 100	15	105	70
810768	35 to 150	18	124	90
810769	100 to 400	20	136	90
810012	100 to 390	23	134	110
810773	150 to 600	24	175	120
810774 / 810784	200 to 800	26	170	140
810779	200 to 800	16	175	90
810770	200 to 800	10	166	56
810775	325 to 1,300	30	175	150
810776	500 to 2,000	35	240	180
810733-60	1,250 to 5,000	50	345	230
810733-75	2,000 to 8,000	50	345	230
810736-60	2,250 to 9,000	60	500	290
810736-75	3,500 to 14,000	60	500	290

Which fixing plate should be used with an Evidgom mounting?

The lower fixing plate must be ordered separately. The kit includes one plate and 3 FHC screws.

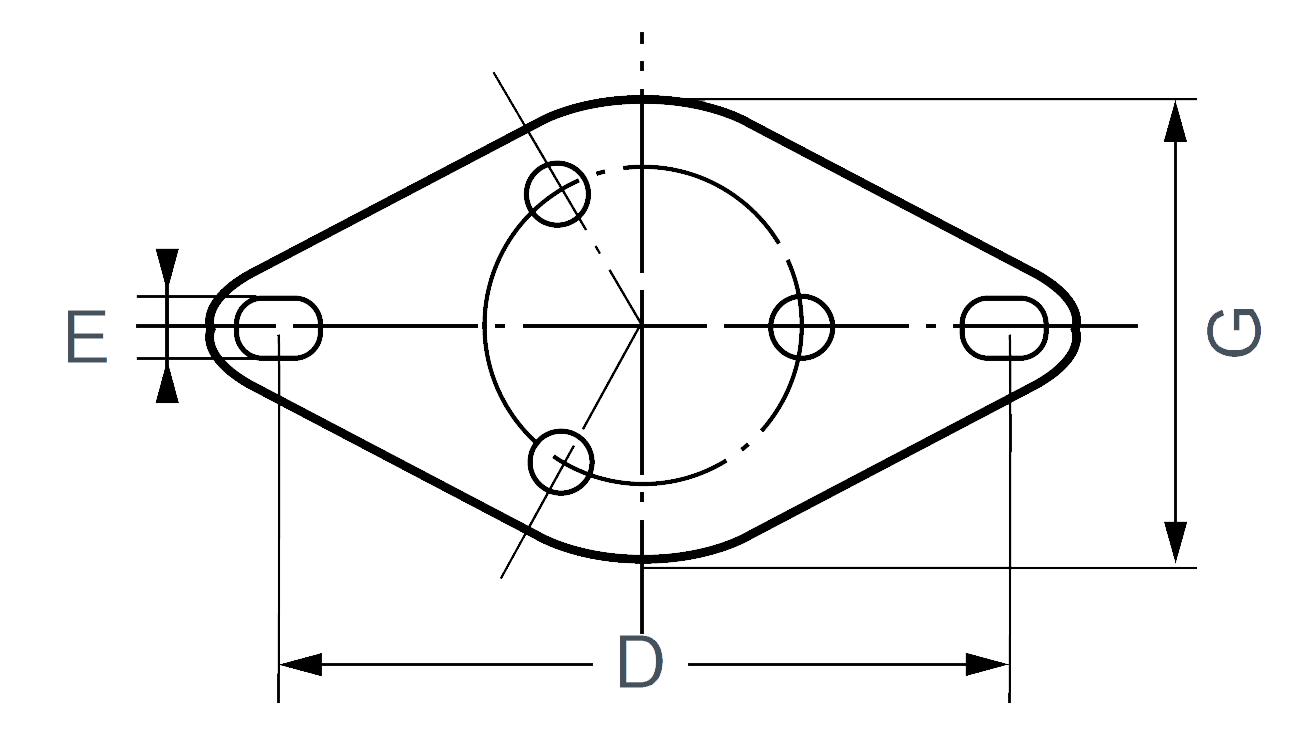

Figure A

Evidgom fixing plate figure A

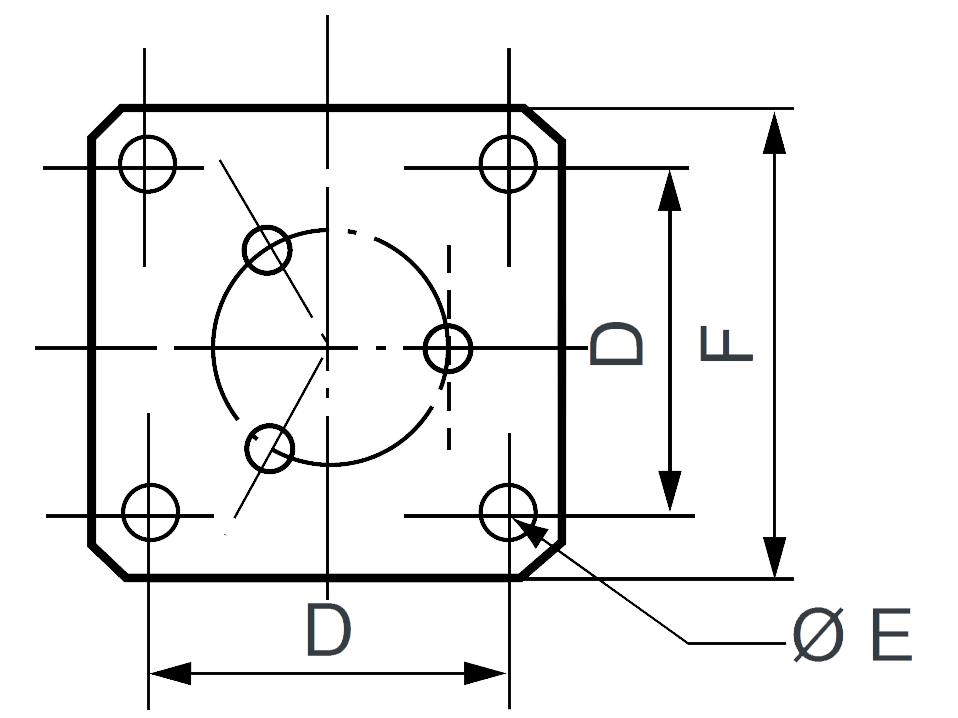

Figure B

Evidgom fixing plate figure B

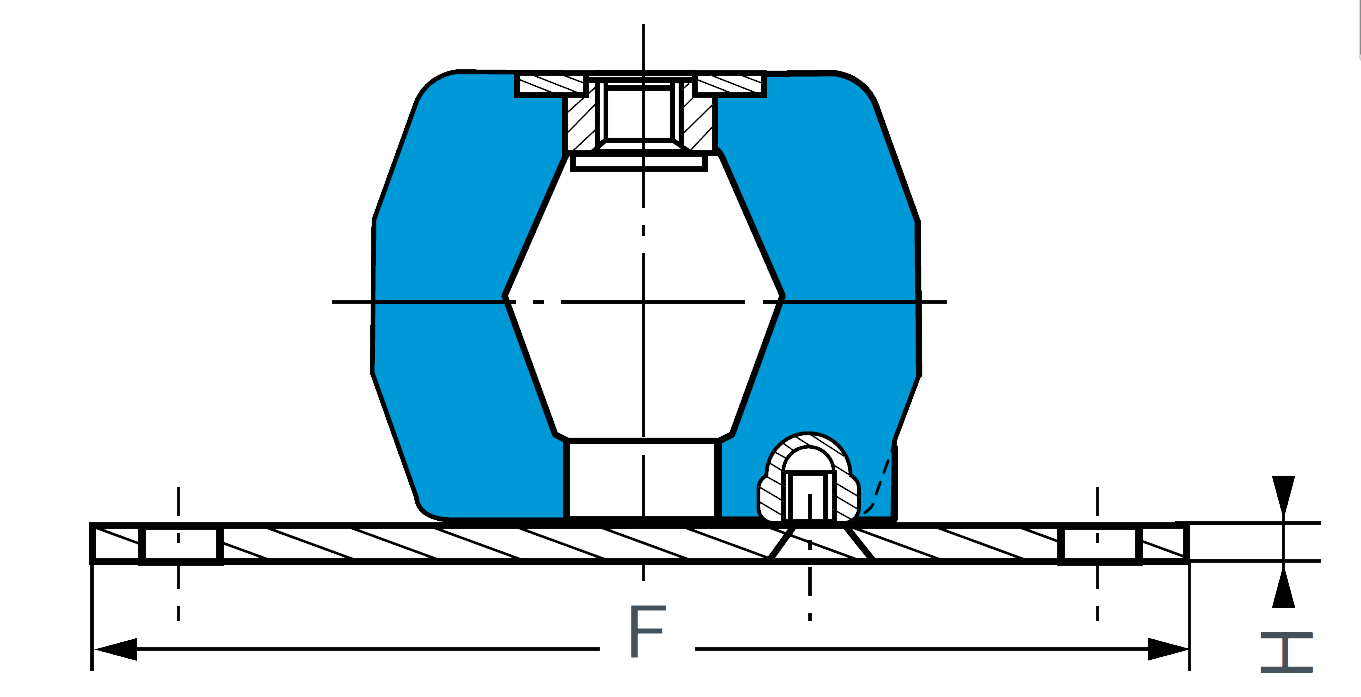

Assembly

Evidgom fixing plate assembly

Reference	Kit	Fig.	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)
810780	337566	A	98 / 102	8.2	117	65	5
810766 / 810768	337567	A	124 / 128	10.2	158	110	5
810769 / 810773 / 810784 / 810779 / 810770	337568	A	178 / 182	10.2	214	150	6
810775 / 810776	337569	B	170	10.5	200	—	8

How does the axial compression load of the Evidgom mounting vary?

Evidgom SE116 load deflection curves

Complete your anti-vibration isolation

For installations requiring a high degree of vibration decoupling, discover our Super Resilient and Regufoam anti-vibration materials.

When vibrations are also accompanied by noise, discover our range of acoustic foams to complement the treatment.

Finally, discover the complete Hutchinson Paulstra range to explore our different suspension and vibration isolation solutions.

Need help choosing your Evidgom mounting?

Not sure about the reference, load, deflection or fixing plate? Our team can help you select the right solution.

Have a project? Contact us!
